SIEMENS 6ES7314-6CF01-0AB0 SIMATIC S7-300, CPU 314C-2DP COMPACT CPU WITH MPI, 24 DI/16 DO, 4AI, 2AO, 1 PT100

Name: SIEMENS 6ES73146CF010AB0 SIMATIC S7300 CPU 314C2DP COMPACT CPU WITH MPI 24 DI16 DO 4AI 2AO 1 PT100
Brand: SIEMENS
Price: 1 USD

Brand Name : SIEMENS

Model Number : 6ES7314-6CF01-0AB0

Certification : CE

Place of Origin : Germany

MOQ : 1

Price : USD

Payment Terms : L/C, T/T

Supply Ability : 100PS

Delivery Time : 10-12Days

Packaging Details : 13,40 x 15,10 x 13,20CM

Software : STEP 7 Professional V14 or higher

Operating Temperature : -20 to 60 degrees Celsius

Dimensions : 13,40 x 15,10 x 13,20CM

Resolution : 800x480 pixels

Protection Rating : IP20

Software Compatibility : STEP 7, TIA Portal

Memory : 256 KB - 2 MB

Certifications : CE, UL, CSA, FM, CCC

Temperature Range : -20°C to 60°C

Number Of Timers : 4/8/16/32

Manufacturer : Siemens

Programming Language : Ladder Logic, Function Block Diagram, Statement List, Structured Control Language

Memory Size : 256 KB

Ip Rating : IP65

Mounting Options : Panel or VESA mount

Contact Now

SIEMENS 6ES7314-6CF01-0AB0 SIMATIC S7-300, CPU 314C-2DP COMPACT CPU WITH MPI, 24 DI/16 DO, 4AI, 2AO, 1 PT100

The Siemens 6ES7314-6CF01-0AB0 is a CPU module from the SIMATIC S7-300 series, specifically the CPU 314C-2DP model. This compact CPU is equipped with various digital and analog inputs/outputs, as well as support for communication via MPI, making it suitable for a range of industrial automation applications.

**Product Description:**
- **Model:** 6ES7314-6CF01-0AB0
- **Product Type:** CPU 314C-2DP
- **Communication Protocol:** MPI (Multi-Point Interface)
- **Digital Inputs:** 24 DI (Digital Inputs)
- **Digital Outputs:** 16 DO (Digital Outputs)
- **Analog Inputs:** 4 AI (Analog Inputs)
- **Analog Outputs:** 2 AO (Analog Outputs)
- **Temperature Sensor Input:** 1 PT100

**Key Features:**
1. **Communication:** Supports communication via MPI (Multi-Point Interface) for connecting to other devices in the network.
2. **Digital Inputs/Outputs:** Provides 24 digital inputs and 16 digital outputs for interfacing with external equipment.
3. **Analog Inputs/Outputs:** Includes 4 analog inputs and 2 analog outputs for handling analog signals.
4. **Temperature Sensor Input:** Supports 1 PT100 temperature sensor input for monitoring temperature.

**Applications:**
1. **Industrial Automation:** Suitable for a variety of automation applications in industrial settings.
2. **Process Control:** Ideal for controlling processes with digital and analog input/output requirements.
3. **Temperature Monitoring:** Capable of integrating temperature sensing and control using the PT100 input.

For detailed programming instructions, configuration settings, and operational guidelines for the 6ES7314-6CF01-0AB0 CPU module, please refer to the product documentation provided by Siemens. This compact CPU module is designed to offer efficient processing and communication capabilities within a SIMATIC S7-300 automation system, enabling effective control and monitoring of industrial processes.

Product
Article Number	6ES7314-6CF01-0AB0
Product Description	SIMATIC S7-300, CPU 314C-2DP COMPACT CPU WITH MPI, 24 DI/16 DO, 4AI, 2AO, 1 PT100, 4 FAST COUNTERS (60 KHZ), INTEGRATED DP INTERFACE, INTEGRATED 24V DC POWER SUPPLY, 48 KBYTE WORKING MEMORY, FRONT CONNECTOR ( X 40PIN) AND MICRO MEMORY CARD REQUIRED
Product family	Not available
Product Lifecycle (PLM)	PM500:Discontinued Product or end of PLM & Support
PLM Effective Date	End of product lifecycle since: 01.10.2013
Notes	Product is no longer available. Successor: 6ES7314-6CH04-0AB0 Compare Products
Successor information
Successor	6ES7314-6CH04-0AB0
Successor Description	SIMATIC S7-300, CPU 314C-2 DP Compact CPU with MPI, 24 DI/16 DO, 4 AI, 2 AO, 1 Pt100, 4 high-speed counters (60 kHz), integrated DP interface, Integr. power supply 24 V DC, work memory 192 KB, Front connector (2x 40-pole) and Micro Memory Card required
Price data
Price Group	2AP
List Price	Show prices
Customer Price	Show prices
Surcharge for Raw Material	see also metal factor (further details are available on the help page)
Metal Factor	see also metal factor (further details are available on the help page)
Delivery information
Export Control Regulations	ECCN : N / AL : N
Estimated dispatch time (Working Days)	1 Day(s)
Net Weight (kg)	0,747 Kg
Packaging Dimension	13,40 x 15,10 x 13,20
Package size unit of measure	CM
Quantity Unit	0 Piece
Packaging Quantity	1
Additional Product Information
EAN	4025515069690
UPC	Not available
Commodity Code	85371091
LKZ_FDB/ CatalogID	ST9-E5
Product Group	4302
Group Code	R111
Country of origin	Germany

SIEMENS 6ES7314-6CF01-0AB0 SIMATIC S7-300, CPU 314C-2DP COMPACT CPU WITH MPI, 24 DI/16 DO, 4AI, 2AO, 1 PT100

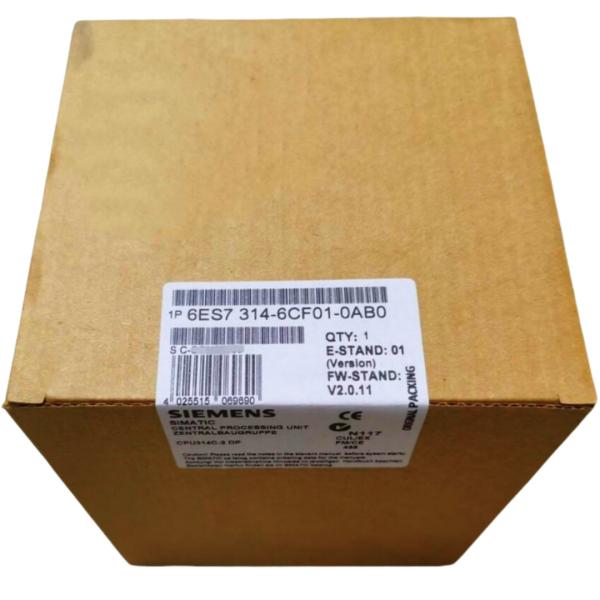

SIEMENS 6ES7314-6CF01-0AB0 SIMATIC S7-300, CPU 314C-2DP COMPACT CPU WITH MPI, 24 DI/16 DO, 4AI, 2AO, 1 PT100 Images
