SIEMENS 6ES7134-4JB50-0AB0 SIMATIC DP, ELECTRONICS MODULE FOR ET 200S, 2 AI RTD 15 MM WIDTH, 15 BIT+SIGN PT100 STD

Name: SIEMENS 6ES71344JB500AB0 SIMATIC DP ELECTRONICS MODULE FOR ET 200S 2 AI RTD 15 MM WIDTH 15 BITSIGN PT100 STD
Brand: SIEMENS
Price: 1 USD

Brand Name : SIEMENS

Model Number : 6ES7134-4JB50-0AB0

Certification : CE

Place of Origin : Germany

MOQ : 1

Price : USD

Payment Terms : L/C, T/T

Supply Ability : 100

Delivery Time : 10-12Days

Packaging Details : 6,40 x 9,00 x 2,30CM

Type Of Product : Analog modules

Power Consumption : Max. 100 mA

High Speed Counters : Up to 8

Mounting Type : DIN rail

Maximum Memory : 1 MB

Protection Class : IP20

Digital Outputs : 8

Communication Protocols : PROFINET, PROFIBUS, Modbus TCP

Operating System : TIA Portal

Display Size : 7 inch

Analog Outputs : 8

Programming Software : SIMATIC WinCC (TIA Portal)

Group Code : R711

Series : SIMATIC ET200

Communication Interfaces : Ethernet, USB, RS232/485

Contact Now

SIEMENS 6ES7134-4JB50-0AB0 SIMATIC DP, ELECTRONICS MODULE FOR ET 200S, 2 AI RTD 15 MM WIDTH, 15 BIT+SIGN PT100 STD

The **SIEMENS 6ES7134-4JB50-0AB0 SIMATIC DP Electronics Module for ET 200S** is specified as follows:

- **Model:** 6ES7134-4JB50-0AB0
- **Product Type:** SIMATIC DP Electronics Module for ET 200S
- **Inputs:** 2 Analog Inputs (AI) RTD (Resistance Temperature Detector) - PT100 Standard
- **Resolution:** 15-bit + sign
- **Width:** 15mm

This module is designed for the SIMATIC DP system within the ET 200S series and provides two analog inputs for RTD (PT100 Standard) measurements. It offers a resolution of 15 bits with sign capabilities. With a width of 15mm, it is compact and suitable for various industrial automation applications requiring RTD input functionality.

Product
Article Number	6ES7134-4JB50-0AB0
Product Description	*Spare part* SIMATIC DP, Electronics module for ET 200S, 2 AI RTD 15 mm width, 15 bit+sign Pt100 STD; Pt100 KL; NI100 STD; NI100 KL; 150 ohm; 300 ohm; 600 ohm; Cycle time 110 ms/channel with SF LED (group fault)
Product family	Not available
Product Lifecycle (PLM)	PM500:Discontinued Product or end of PLM & Support
PLM Effective Date	End of product lifecycle since: 16.09.2020
Notes	Product is no longer available. Successor: 6ES7134-4JB51-0AB0 Compare Products
Successor information
Successor	6ES7134-4JB51-0AB0
Successor Description	* Spare part * SIMATIC DP, Electronics module for ET 200S, 2/4 AI RTD Standard, 15 mm width, 15 bit+sign Pt100 STD; Pt100 KL; NI100 STD; NI100 KL; 150 ohm; 300 ohm; 600 ohm; Cycle time 110 ms/channel with SF LED (group fault)
Price data
Price Group	2ET
List Price	Show prices
Customer Price	Show prices
Surcharge for Raw Material	see also metal factor (further details are available on the help page)
Metal Factor	see also metal factor (further details are available on the help page)
Delivery information
Export Control Regulations	ECCN : N / AL : N
Estimated dispatch time (Working Days)	1 Day(s)
Net Weight (kg)	0,047 Kg
Packaging Dimension	6,40 x 9,00 x 2,30
Package size unit of measure	CM
Quantity Unit	0 Piece
Packaging Quantity	1
Additional Product Information
EAN	4025515058519
UPC	662643231304
Commodity Code	85389091
LKZ_FDB/ CatalogID	ST9-E5
Product Group	4467
Group Code	R111
Country of origin	Germany

SIEMENS 6ES7134-4JB50-0AB0 SIMATIC DP, ELECTRONICS MODULE FOR ET 200S, 2 AI RTD 15 MM WIDTH, 15 BIT+SIGN PT100 STD

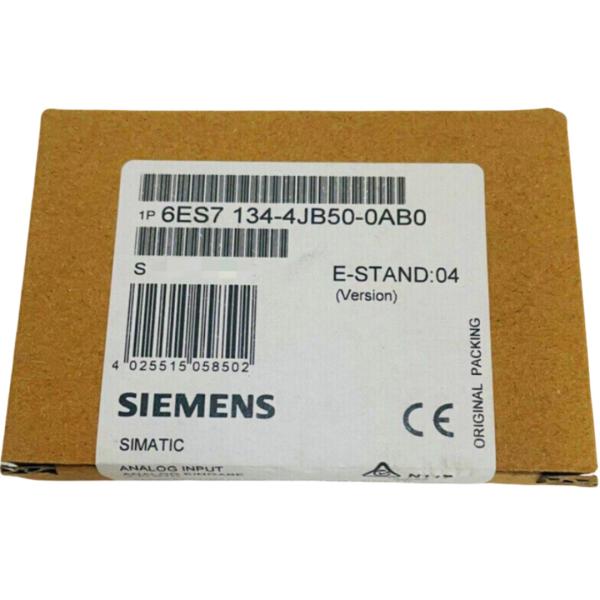

SIEMENS 6ES7134-4JB50-0AB0 SIMATIC DP, ELECTRONICS MODULE FOR ET 200S, 2 AI RTD 15 MM WIDTH, 15 BIT+SIGN PT100 STD Images
