Brand Name : SIEMENS
Model Number : 6ES7151-3BA23-0AB0
Certification : CE
Place of Origin : Germany
MOQ : 1
Price : USD
Payment Terms : L/C, T/T
Supply Ability : 100PS
Delivery Time : 10-12Days
Packaging Details : 8,30 x 12,80 x 7,30CM
Storage Temperature : -40 to 70°C
Analog Inputs : 8/16
Digital Outputs : 16/32/64
Type : Programmable Logic Controller
Protection Class : IP20
Protection Class Ip : IP30
Subrange : ET200
Operating Temperature : -25°C to +60°C
Compatibility : with other SIMATIC controllers
Cpu Type : 1511-1 PN
Integrated Data Logging : Yes
Serial : 1
Communication Interface : PROFINET
Maximum Memory : 1 MB
Digital Output : 16 channels
SIEMENS 6ES7151-3BA23-0AB0 SIMATIC DP, INTERFACE MODULE IM 151-3 PN HF FOR ET 200S TRANSMISSION RATE 100 MBIT/S MAX. 63 I/O MODULES UP TO 2 M WIDTH CAN BE CONNECTED; 2X BUS CONNECTIONS VIA RJ45 INCL.
The **Siemens 6ES7151-3BA23-0AB0** is an **Interface Module** in the **SIMATIC DP** series, specifically the **IM 151-3 PN HF**, designed for use with the **ET 200S** system. This module enables communication with a **transmission rate of 100 Mbit/s** over **PROFINET**. It supports a maximum of **63 I/O modules**, allowing for the connection of modules with a combined width of up to **2 meters**. Additionally, it is equipped with **2x bus connections via RJ45** for enhanced connectivity.
Key features of the 6ES7151-3BA23-0AB0 Interface Module IM 151-3 PN HF for ET 200S:
  - **Product Code:** 6ES7151-3BA23-0AB0
  - **Product Line:** SIMATIC DP
  - **Compatible System:** ET 200S
  - **Module Type:** Interface Module (IM 151-3 PN HF)
  - **Communication Protocol:** PROFINET
  - **Transmission Rate:** 100 Mbit/s
  - **Maximum Connectable Modules:** 63 I/O modules
  - **Maximum Combined Width:** Up to 2 meters
  - **Bus Connections:** 2x RJ45
This Interface Module IM 151-3 PN HF is essential for establishing communication within the ET 200S system via the PROFINET protocol. With a transmission rate of 100 Mbit/s, it supports efficient data exchange between the system and external devices. The module's capacity to support up to 63 I/O modules and connect modules with a combined width of up to 2 meters, along with 2x bus connections via RJ45, enhances connectivity and flexibility for various industrial automation applications.
| Product | |
| Article Number | 6ES7151-3BA23-0AB0 |
| Product Description | *** Spare part *** SIMATIC DP, Interface module IM 151-3 PN HF for ET 200S Transmission rate 100 Mbit/s max. 63 I/O modules up to 2 m width can be connected; 2x bus connections via RJ45 incl. termination module |
| Product family | Not available |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| PLM Effective Date | Product is cancelled since: 01.10.2023 |
| Notes |   			 This product is a spare part product. More information you'll get via "Alternative Buying Options".     			If you need assistance please contact our local Siemens office   			 |
| Price data | |
| Price Group | S20 |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Material | see also metal factor (further details are available on the help page) |
| Metal Factor | see also metal factor (further details are available on the help page) |
| Delivery information | |
| Export Control Regulations | ECCN : 9N9999 / AL : N |
| Estimated dispatch time (Working Days) | 1 Day(s) |
| Net Weight (kg) | 0,200 Kg |
| Packaging Dimension | 8,30 x 12,80 x 7,30 |
| Package size unit of measure | CM |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | 4025515076131 |
| UPC | 662643400892 |
| Commodity Code | 85176200 |
| LKZ_FDB/ CatalogID | ST76 |
| Product Group | 4467 |
| Group Code | R151 |
| Country of origin | Germany |

|
                                             |

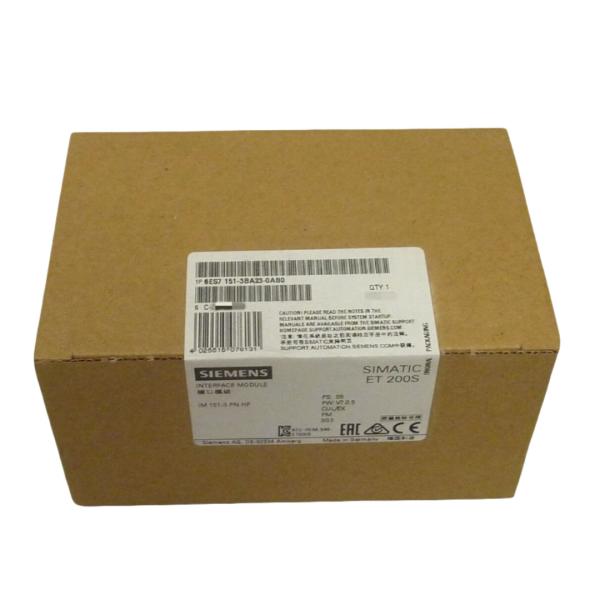

                        SIEMENS 6ES7151-3BA23-0AB0 SIMATIC DP, INTERFACE MODULE IM 151-3 PN HF FOR ET 200S TRANSMISSION RATE 100 MBIT/S MAX. 63 I/O MODULES UP TO 2 M WIDTH Images |
